RFCTHERM-400(Biphenyl+Diphenyl Oxide)
CAS No: 8004-13-5
Product Description
RFCTHERM-400 is a eutectic mixture of 73.5% diphenyl oxide (DPO) and 26.5% biphenyl, it is a synthetic heat transfer fluid designed to meet the demanding requirements of vapor phase systems from 257° C to 400° C or liquid phase systems from 12° C to 400° C, It combines exceptional thermal stability and low viscosity for efficient, dependable, uniform performance in a wide optimum use range, RFCTHERM-400 has the highest thermal stability of all organic heat transfer fluids. It is miscible and interchangeable (for top-up or design purposes) with other similarly constituted diphenyl-oxide (DPO)/biphenyl fluids, such as: Therminol-vp-1, Dowtherm-A, Therm-S 300 and Diphy1.
The Temperature Range for use
Liquid: 12℃ to 400℃
Vapor: 257℃ to 400℃
Applications
It can be used in a wide variety of industries, such as:
· Concentrated Solar Power Systems,
· PET production
· Synthetic Fiber plants
· Many other applications that require a high temperature heat transfer fluid.
Our Production Capacity
At present: 10000mt/a.
Typical Properties
|
Property
|
Standard
|
Method
|
|
Apperance
|
Clear Water White Liquid
|
|
|
Density g/cm3
|
1.050-1.075
|
GB No233
|
|
Viscosity at 40 °C
|
2.48cSt
|
GB265
|
|
Water(mg/Kg)
|
300
|
GB6283
|
|
Crystal Point ℃
|
12.0
|
GB7533
|
|
Maximum Film Temperature ℃
|
425
|
|
|
Normal Boiling Point ℃
|
≥257
|
GB7534
|
|
Flash Point ℃
|
124
|
ASTMD-92
|
|
Fire Point ℃
|
127
|
ASTMD-92
|
|
Autoignition Temperature ℃
|
621
|
ASTMD-2155
|
|
Kinematic Viscosity(40℃)
|
2.48cst
|
|
|
Optimum Use Range ℃
|
Liquid: 12-400
Vapor: 260-400
|
|
|
Constituent
|
Biphenyl (wt)%
|
26.5±1.0
|
Q/HC179-80
|
|
Diphenylether(wt) %
|
73.5±1.0
|
Q/HC179-80
|
|
Average Molecular weight
|
166
|
|
|
S
|
≤5ppm
|
|
|
CL
|
≤10ppm
|
|

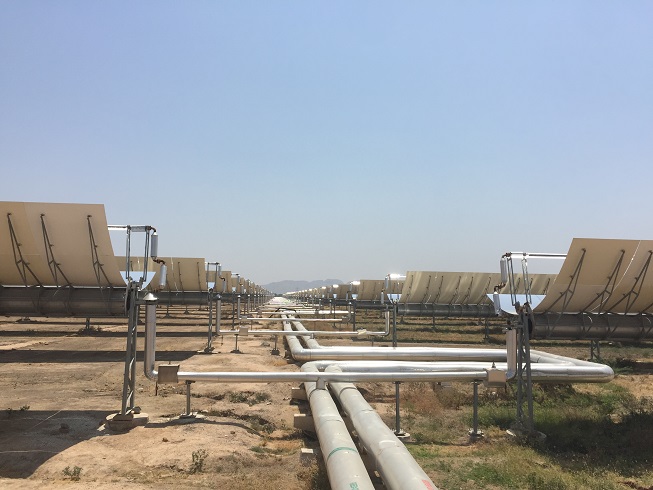

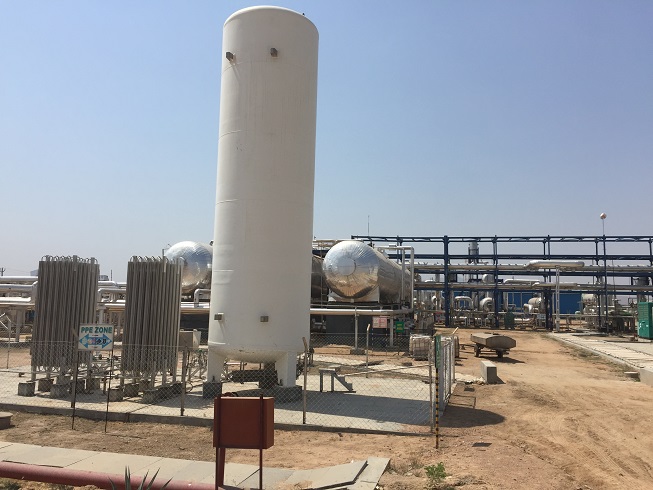

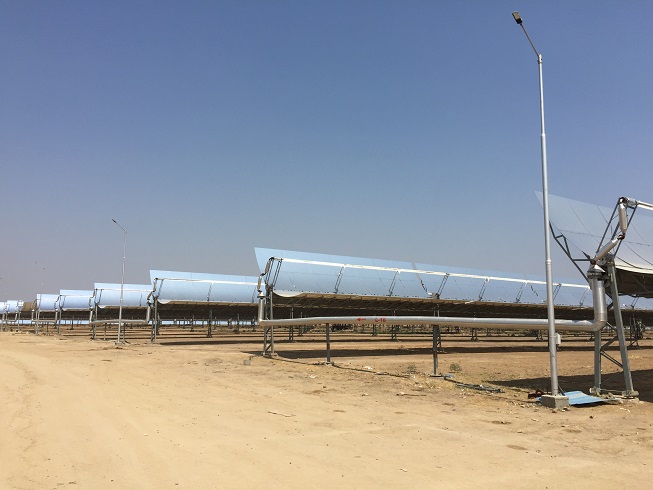

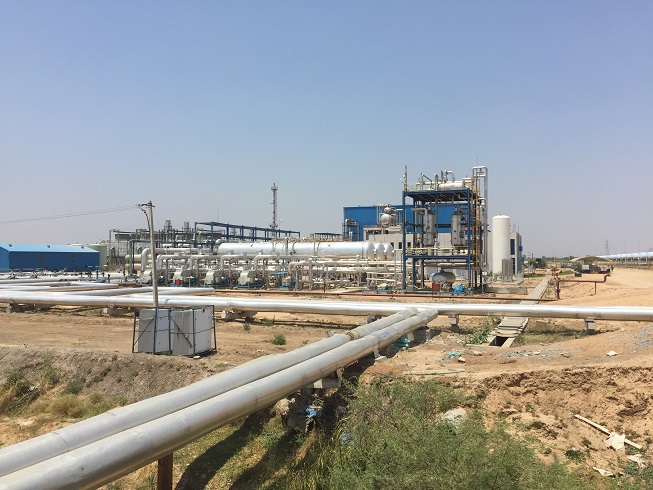

In china, we are the Biggest supplier of Heat Transfer Fluid(Biphenyl+Diphenyl Oxide) used in CSP project, in the CSP project below, our HTF running in the pipes capture energy from the sun and covert it to steam for generating electricity.


|
